FLAUTA HORIZONTAL / VERTICAL OVAL

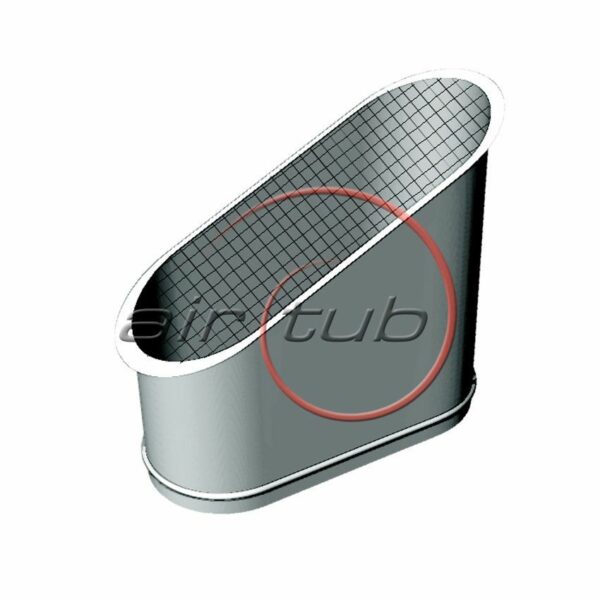

FLAUTA MALLA AIR OVAL OVALADO

FLAUTA HORIZONTAL / VERTICAL OVAL

-Descripción:
Flauta horizontal o vertical de sección Oval con malla electrosoldada

-Material:
Acero galvanizado con recubrimiento de zinc Z-200/ Z-275 de espesores 0.6, 0.7, 0.8 y 1 mm según la sección.

-Secciones Disponibles:
Desde 150 x 490 hasta 600 x 2020. Alturas standard fijas : 150, 200, 250, 300, 350, 400, 450, 500, 550, 600.  La anchura vendrá definida segun el Ø  del tubo inicial.

-Tipo de unión:
Enchufable  con manguitos. (Accesorios Macho y Tubos Hembra en ambas bocas ) Union mediante Tornillos autotaladrantes o remaches.

-Opciones:

Posibilidad de modificar longitud del cuello.

Categorías:

A Continuación les indicamos los PVP. Si lo desea puede descargarse la pagina en pdf.

Ficha Técnica Codo 30º

Ficha Técnica Flauta Oval

Catálogo PDF Airtub

Tarifa Flauta Oval



Ø INICIALA150200250300350400450500550600
315B420
62,84
350B470440
64,0264,02
400B550520490465
74,7474,7474,7474,74
450B625600570540515
77,3477,3477,3477,3477,34
500B705680650620595565
81,1981,1981,1981,1981,1981,19
550B785755730700670640615
82,0782,0782,0782,0782,0782,0782,07
600B870835805780750720690665
100,82100,82100,82100,82100,82100,82100,82100,82
650B935910880850825795765740710
117,16117,16117,16117,16117,16117,16117,16117,16117,16
700B1020990965935905880850820790
141,11141,11141,11141,11141,11141,11141,11141,11141,11
750B1095106510351005980950925895865835
149,74149,74149,74149,74149,74149,74149,74149,74149,74149,74
800B1175115011201090106510351005980950920
182,14182,14182,14182,14182,14182,14182,14182,14182,14182,14
850B125012201195116511351105108010501020995
214,25214,25214,25214,25214,25214,25214,25214,25214,25214,25
900B1335130512751250122011901165113511051080
239,30239,30239,30239,30239,30239,30239,30239,30239,30239,30
950B1405138013501320129012651235121011801150
265,22265,22265,22265,22265,22265,22265,22265,22265,22265,22
1000B1490146014351405137513501320129012651235
281,04281,04281,04281,04281,04281,04281,04281,04281,04281,04
1100B1650162015901565153515051475145014201390
316,93316,93316,93316,93316,93316,93316,93316,93316,93316,93
1250B1885185518251800177017401715168516551625
409,09409,09409,09409,09409,09409,09409,09409,09409,09409,09
1400B2120209020602035200519751950192018901865
477,98477,98477,98477,98477,98477,98477,98477,98477,98477,98
1500B22202190216021352105207520502020
533,80533,80533,80533,80533,80533,80533,80533,80
