MANGUITO OVAL

MANGUITO UNION OVAL OVALADO AIR AIRTUB

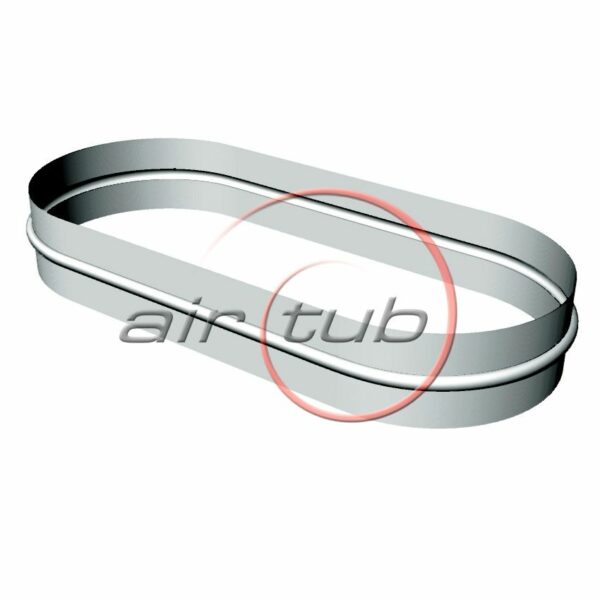

MANGUITO OVAL

-Descripción:
Manguito unión de Sección Oval

-Material:
Acero galvanizado con recubrimiento de zinc Z-200/ Z-275 de espesores 0.6, 0.7, 0.8 y 1 mm según la sección.

-Secciones Disponibles:
Desde 150 x 490 hasta 600 x 2020. Alturas standard fijas : 150, 200, 250, 300, 350, 400, 450, 500, 550, 600.  La anchura vendrá definida segun el Ø  del tubo inicial.

-Tipo de unión:
Enchufable  con manguitos. (Accesorios Macho y Tubos Hembra en ambas bocas ) Union mediante Tornillos autotaladrantes o remaches.

-Opciones:

Posibilidad de modificar longitud.

Categorías:

A Continuación les indicamos los PVP. Si lo desea puede descargarse la pagina en pdf.

Ficha Técnica Codo 30º

Ficha Técnica Manguito Oval

Catálogo PDF Airtub

Tarifa  Manguito Oval



Ø INICIALA150200250300350400450500550600
315B420
5,30
350B470440
5,765,68
400B550520490465
6,716,716,295,92
450B625600570540515
7,307,307,306,856,49
500B705680650620595565
7,867,867,867,867,507,46
550B785755730700670640615
8,708,708,708,708,708,7010,07
600B870835805780750720690665
12,1112,1112,1112,1112,1112,1112,1112,11
650B935910880850825795765740710
12,5912,5912,5912,5912,5912,5912,5912,5912,59
700B1020990965935905880850820790
13,0813,0813,0813,0813,0813,0813,0813,0813,08
750B1095106510351005980950925895865835
14,2314,2314,2314,2314,2314,2314,2314,2314,2314,23
800B1175115011201090106510351005980950920
15,4015,4015,4015,4015,4015,4015,4015,4015,4015,40
850B125012201195116511351105108010501020995
16,4216,4216,4216,4216,4216,4216,4216,4216,4216,42
900B1335130512751250122011901165113511051080
17,4218,0218,0218,0218,0218,0218,0218,0218,0218,02
950B1405138013501320129012651235121011801150
18,4218,4218,4218,4218,4218,4218,4218,4218,4218,42
1000B1490146014351405137513501320129012651235
19,4320,1022,6322,6322,6322,6322,6322,6322,6322,63
1100B1650162015901565153515051475145014201390
21,5222,3025,3925,3925,3925,3925,3925,3925,3925,39
1250B1885185518251800177017401715168516551625
24,5625,5428,4428,3728,3728,3728,3728,3728,3728,37
1400B2120209020602035200519751950192018901865
27,6428,7832,1031,7831,7831,7831,7831,7831,7831,78
1500B22202190216021352105207520502020
34,5734,1233,9834,0634,0634,0634,0634,06
