TES CÓNICAS 45º INOXIDABLES

-Descripción:

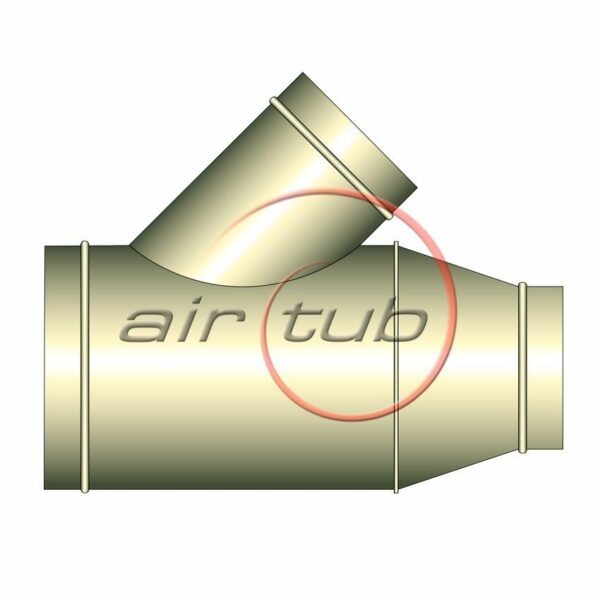

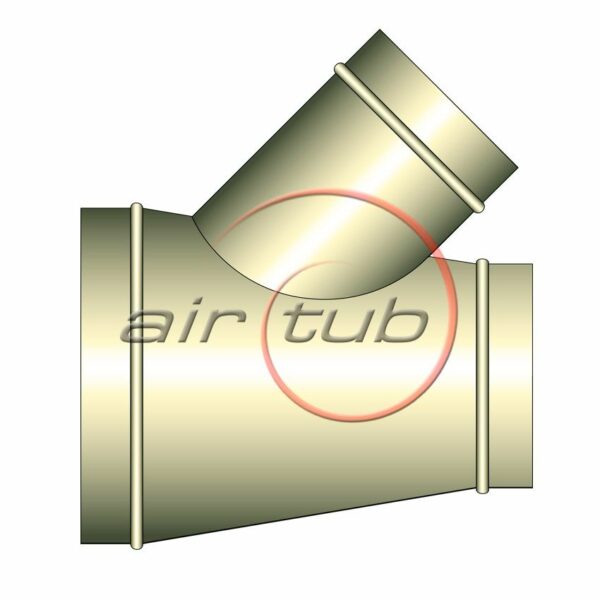

TES Cónicas a 45º construidas a partir de 4 piezas  ( tubo principal cónico con cuellos en cada boca e injerto inclinado a 45º) El diametro del injerto siempre sera inferior al tubo principal.

-Material:
Acero Inoxidable AISI 304-2B de espesor 0.5 y 0.6 mm según el diámetro

-Diámetros Disponibles:
Desde Ø 80 hasta Ø 1600

-Tipo de unión:
Enchufable (Accesorios Macho y Tubos Hembra en ambas bocas ) Union mediante Tornillos autotaladrantes o remaches.

-Opciones:
Se puedan fabricar tes con diferentes grados de inclinación en el injerto, diámetros a medida y modificar longitudes tanto en el tubo principal como en el injerto. Posibilidad de acabado M/H ,unión con Brida tipo “Metu”, brida plana (2/3 mm), tapa final e incluso malla electrosoldada.

Categorías:

A Continuación les indicamos los PVP. Si lo desea puede descargarse la pagina en pdf.

Ficha Técnica Codo 30º

Ficha Técnica Tes Cónicas a 45º Inox

Catálogo PDF Airtub

Tarifa Tes Cónicas a 45º Inoxidables



Ø80,00100,00125,00150,00160,00175,00200,00225,00250,00275,00300,00315,00350,00400,00450,00500,00550,00600,00630,00650,00700,00750,00800,00850,00900,00950,001.000,001.050,001.100,001.150,001.200,001.250,001.300,001.400,00
10047,62
12549,8550,83
15054,1655,0961,08
16056,8058,7566,7633,38
17559,4462,4072,4377,6838,84
20065,0265,8873,9683,0290,2889,89
22572,6574,2885,5190,65102,11101,23103,33
25079,9784,0093,17102,97106,69106,69112,14116,51
27590,1198,62106,69110,51109,30113,22128,51137,88
30093,37106,25111,71119,51119,45127,20137,02141,25146,17
31595,88108,66119,57127,74128,51137,02141,37150,31154,91160,57
350121,54123,91126,97140,60135,48140,08146,83154,91164,05178,68180,85
400142,25145,73147,82146,83148,80156,65167,77177,37189,37205,20227,56
450148,8077,46154,91165,36178,48188,28199,19216,85231,91253,73278,82
500183,70188,50199,19217,74231,48242,59260,05279,70294,97318,30
550207,71216,42230,82241,08260,05275,34296,28308,05336,85356,70
600231,91241,08257,02279,90289,73308,05338,59363,47393,36431,34
630251,00262,03285,14306,53323,44350,82379,07410,38446,60223,31
650260,93267,04290,39323,33338,81363,04394,67427,38461,87460,99230,50
700296,28325,61345,36386,59393,04427,18460,99479,76493,50534,52531,90
750368,93390,95410,82428,04457,93469,73500,04537,12557,53548,03582,07
800395,33423,70457,72471,04501,58538,44567,04584,38579,90604,43626,69
850438,53492,18504,61537,12558,07588,84605,86602,58632,46664,97700,75
900541,50552,41586,01609,13623,09623,09663,66709,49760,09764,26
950585,12610,44623,09668,64669,35709,49760,09764,02785,86846,60
1000609,13629,41667,92698,06709,49759,66763,72799,80846,94853,25921,97
1050641,86663,56686,64721,60737,86777,78806,09840,17884,68931,91977,62488,81
1100674,57697,72705,35757,90766,21795,89848,45880,54922,421.010,571.033,251.088,45544,22
1150704,03724,43749,58799,09804,38839,63883,68930,83972,711.046,121.080,371.140,70897,94448,97
1200733,48751,14793,80842,56842,56883,37918,91981,111.022,991.081,681.127,501.192,931.251,641.296,36648,18
1250800,45842,56918,71883,37924,17964,961.021,681.075,991.110,911.147,361.206,911.373,901.333,431.475,801.415,26
1300954,05497,64995,281.057,911.097,711.180,731.237,671.308,581.380,781.414,381.520,631.536,341.650,561.673,141.759,08
1400544,501.088,991.123,131.177,671.228,731.300,721.357,871.424,951.504,921.627,541.627,981.740,321.743,171.799,461.891,30
15001.171,991.243,121.300,721.360,491.432,921.490,411.627,091.736,521.737,481.838,821.824,341.929,361.992,192.132,15
1.250,121.325,991.387,431.451,181.528,451.589,771.735,561.852,301.853,321.961,411.945,962.057,992.125,012.274,29
