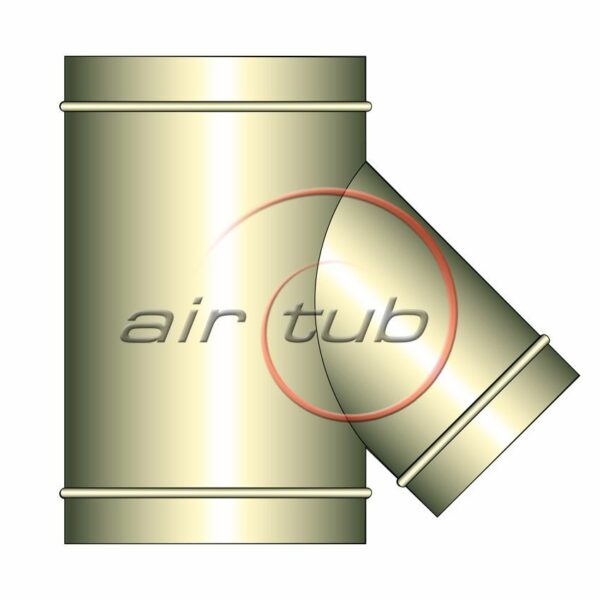

TES CON REDUCCION A 45º INOXIDABLES

TES REDUCCION 45 INOXIDABLES AIR INOX AIRTUB

TES CON REDUCCION A 45º INOXIDABLES

-Descripción:
TES con Reducción  45º construidas a partir de dos piezas ( tubo principal con injerto inclinado a 45 º) El diametro del injerto siempre sera inferior al tubo principal.

-Material:
Acero Inoxidable AISI 304-2B de espesor 0.5 y 0.6 mm según el diámetro

-Diámetros Disponibles:
Desde Ø 80 hasta  Ø 1600

-Tipo de unión:
Enchufable (Accesorios Macho y Tubos Hembra en ambas bocas ) Union mediante Tornillos autotaladrantes o remaches.

-Opciones:
Se puedan fabricar tes con diferentes grados de inclinación en el injerto, diámetros a medida y modificar longitudes tanto en el tubo principal como en el injerto. Posibilidad de acabado M/H ,unión con Brida tipo “Metu”, brida plana (2/3 mm), tapa final e incluso malla electrosoldada.

Categorías:

A Continuación les indicamos los PVP. Si lo desea puede descargarse la pagina en pdf.

Ficha Técnica Codo 30º

Ficha Técnica Tes con Reducción a 45º

Catálogo PDF Airtub

Tarifa Tes con Reducción a 45º



Ø801001251501601752002252502753003153504004505005506006306507007508008509009501.000,001.050,001.100,001.150,001.200,001.250,001.300,00
10031,68
12533,4936,26
15035,8638,8646,60
16037,4442,8649,6254,00
17539,0146,8752,6358,3961,13
20041,6247,2858,6662,5763,8865,17
22542,0255,0962,3368,5970,0471,4875,40
25043,2059,9668,5972,2675,2678,2678,6785,88
27547,9363,8868,5974,8878,5582,2188,4992,1594,51
30049,2468,1873,5780,6383,2685,8889,1493,7399,12109,70
31552,1070,8478,6781,4283,9886,5390,5997,13100,27110,50120,96
35052,4978,0281,1686,1287,4388,7595,04101,58107,34119,93128,53134,57
40055,0978,2681,7086,1289,2892,42102,37107,34117,56126,44134,51142,42156,82
45082,2186,9294,76102,61107,58116,50118,60131,16141,90156,58181,16196,07
50083,28101,06105,25109,44115,98119,93133,79141,12152,83179,58192,17231,97258,13
550107,34108,92110,50117,29132,20136,52149,75176,46186,40226,20254,74264,95286,55
600119,38130,66134,05146,09179,58188,76226,20254,74266,52284,32312,60351,34
630132,28139,42162,34183,00206,16239,56259,57273,59297,67331,19374,89404,48
650133,91144,78178,56186,40223,57252,91264,40280,64311,03349,78398,45434,08451,02
700171,73186,40221,99249,49261,55277,91306,84347,68397,42429,89448,21467,98487,73
750217,57248,20257,34272,81305,78345,07395,34425,16445,18484,57492,46500,32548,86
800238,76259,98271,78302,66346,10399,00422,80450,84481,19500,05520,86541,67560,52608,45
850339,83400,81429,89464,45487,49507,89536,96548,63560,28599,53618,38650,30
900435,38460,27482,24513,65538,78562,62579,90597,17617,33647,18679,12757,38
950442,96475,97516,80539,57564,97596,14605,82615,52646,91677,02745,62761,84822,80
1000502,40532,24567,06613,42615,23629,36643,51673,36749,53781,75822,31860,82901,13
1050578,58631,61628,98646,19663,41714,07761,71802,16841,56877,31917,48962,45
1100590,10649,80642,73663,02683,29754,78773,90822,58860,82893,80933,841.007,411.032,17
1150603,46665,38669,31693,13716,95764,74799,69841,82880,78913,18976,511.025,221.056,901.095,53
1200616,81680,95695,88723,24750,59774,70825,47861,06900,72932,541.019,171.043,041.088,581.134,131.190,16
1250754,78745,86758,82771,78834,24851,39902,68931,511.019,171.035,701.128,881.161,601.194,341.246,181.298,02
1300777,68775,20798,89822,58859,24900,86940,91999,561.038,831.128,881.200,101.253,521.306,931.352,741.398,531.646,48
1400823,10841,03858,96901,13939,32997,721.034,631.140,921.199,301.307,171.384,281.461,381.549,611.637,831.686,53
1500859,24885,95912,65940,91992,881.043,541.151,691.191,731.308,601.479,681.562,161.644,621.682,261.719,861.753,552.028,44
1600916,51945,00973,491.003,631.059,071.113,111.228,461.271,171.395,841.578,321.666,301.754,271.794,401.834,511.870,442.163,67
